SMART ODME
The Oil Discharge Monitoring Equipment (Smart ODME) has been designed to provide means of monitoring, recording and controlling the ballast discharge for crude oil, product and chemical tankers including ICE class vessels. This system is modular in construction and does not require the usual pump/motor bulkhead penetration as used on older systems. The Smart ODME includes all components required to meet MEPC 108(49) and the latest MEPC 240(65) for Bio Fuels, effective 1 January 2016.
The Smart ODME incorporates a ‘simulation mode’ to aid system demonstration to PSC surveyors, is designed for ease of retrofitting, operation, installation and maintenance.
Discharge limits are set at 30 litres of Oil per nautical mile or 1 / 30,000 of the previous cargo for slop and wash water discharges.
APPLICATIONS
- Slop Water Discharge
- Tank Wash Water Discharge
- Clean Ballast Water Discharge
- Bio Fuel Approved
- Easy Installation
How does the ODME Work?
We offer certified ODME solutions and installations that meet and exceed regulations – including the latest amendments to MEPC MARPOL’s requirements for monitoring and controlling of ballast water.

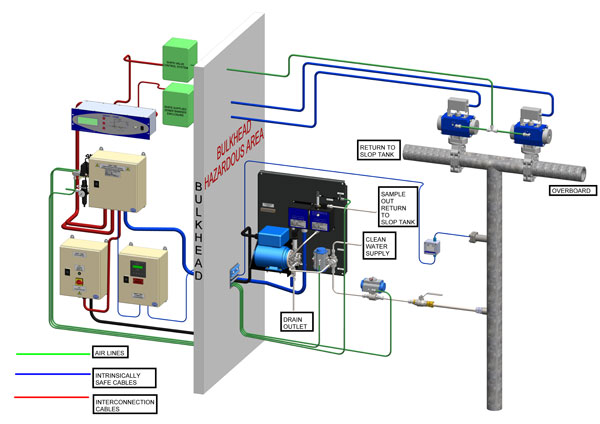

The ODME principle is based on a measurement of oil content in the ballast water, which is held up against the regulations and requirements. By data interpretation of an automated process, either allows or prevents discharge of ballast water. A sample point on the discharge line allows the analyzer to determine the oil content of the ballast water in PPM. The analyzer is self-maintained by periodical cleansing with fresh water, and therefore requires a minimum of active maintenance from the crew.
The results of the analyzer are sent to a computer, which determines whether the oil content values are to result in overboard discharge or not. The valves that direct the ballast water either over board or to the slop tank are controlled by the integrated computer. A GPS signal further automates the process by including special areas and completes the required input for the Oil Record Book.
Type approval certificates for our ODME systems
The ODME systems offered by SWIFT Marine are equipped and operational according to IMO MARPOL. It means the ODME system is supplied with type approval certificates and the MEPC specified spare parts list. It is to safeguard the ODME from regular wear and tear and in the unlikely event of a breakdown. The spare parts are delivered when the new ODME is installed, together with consumables for planned maintenance.
SPECIFICATION
| MEASUREMENT | |
| Oil types: | As Per MEPC 108(49) + MEPC 240(65) requirements |
| Clean water calibration: | Automatic |
| Oil measurement range: | 0 – 1000 ppm all types |
| Resolution: | 1 ppm |
| Accuracy oil + solids: | As Per MEPC 108(49) requirements |
| DATA STORAGE AND RETRIEVAL | |

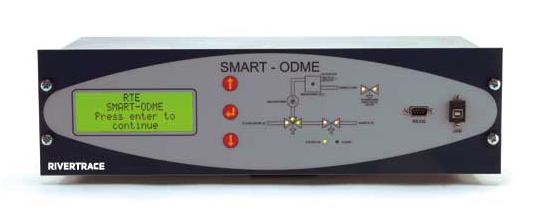

| Data retrieval: | via LCD display or download to PC using Hyperterminal or Rivertrace IMOLog downloader programme |
| SYSTEM AND SUPPLY | |
| Supply voltage: | 115 / 230V ac, 50 – 60Hz (Switchable) |
| Zener Barrier/Computer Module: | 115 / 230V ac, 50 – 60Hz (Switchable) |
| Motor: | 380-440V ac, 50-60Hz, 3 phase, 250W |
| Supply voltage Consumption: | < 50 VA Single Phase |
| Approvals: | MEPC 108 (49) – DNV GL, USCG, ABS, CCS and NKK. MEPC 240(65) – DNV GL, CCS and NKK |
Specifications and system descriptions accurate at time of printing. These are subject to change.
This system may be installed in line with any new and existing IMO MEPC 60(33) and 107(49) approved monitors.
