PL3700 Pressure And Level Transmitter

$1.00

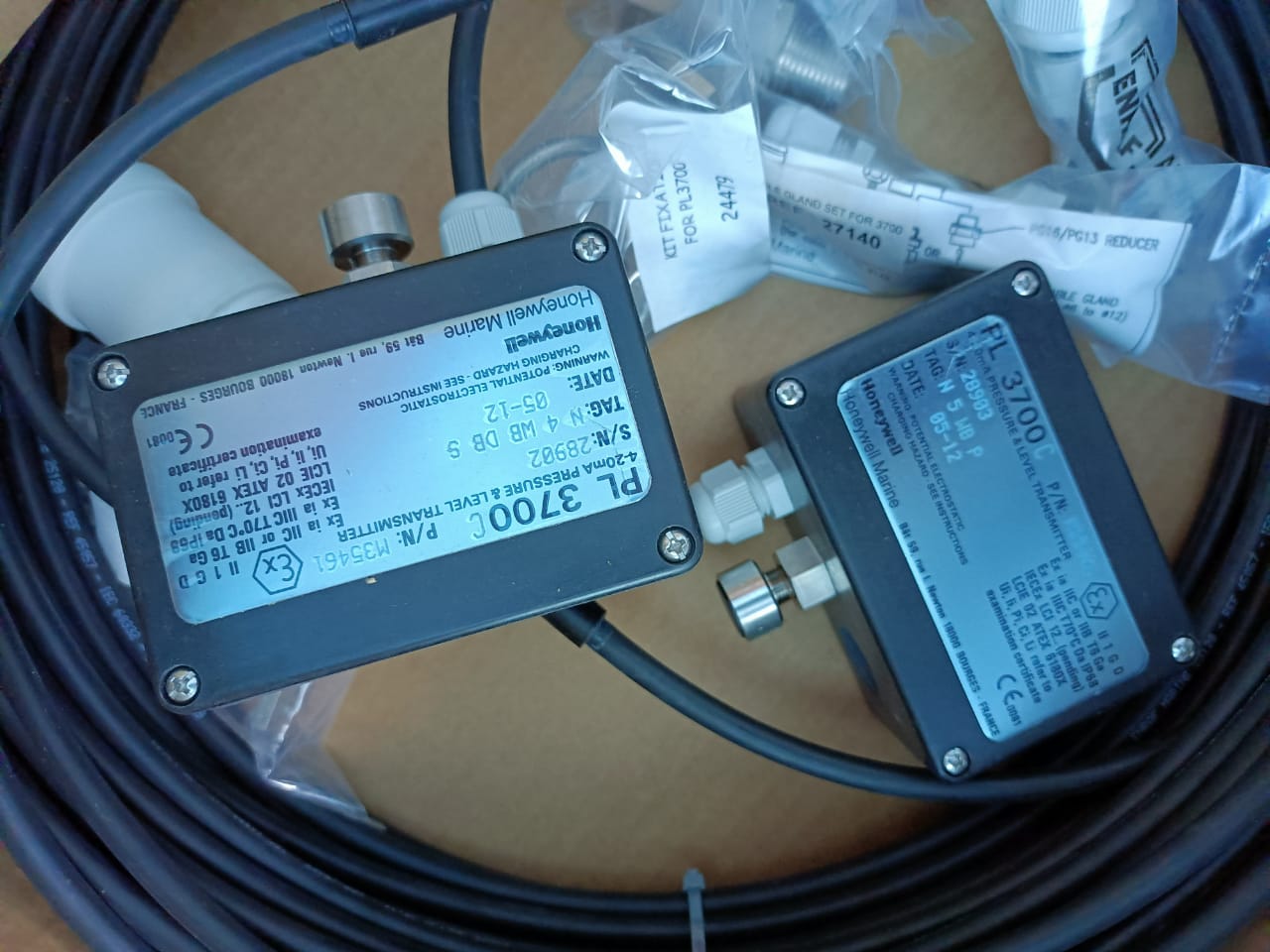

The Honeywell Marine PL3700 is an Pressure and Level Transmitter. The PL3700 is a ceramic Transmitter that is able to withstand most petroleum, chemical products and sea water.

The Polyester or 316L S.S. remote electronic box includes the amplifier with zero and span adjustment.

The pressure transducer is sealed inside a stainless steel 316 L or composite polyester housing (IP66/68 rating) following the application.

Available Models:- PL3700 & PL3700 C

Categories: ,

Description

Honeywell Pressure & level Transmitter.
Model NO :- PL3700 & PL3700 C.
Range :- 0~500 mBar & 0~2000 mBar.
Output current :- 4~20 MA.
Certification & Approvals :- Ex ia IIC or IIB T6 Ga
Ex ia IIIC T70°C Da IP 66/67/68 : Sea water-resistant polyester housing: IP66.
Stainless steel housing: IP67/68
LCIE 02 ATEX 6180 X and IECEx LCI 11.0040X
Power Supply :- 12 to 30 VDC (Maximum 28 VDC for use on hazardous area with intrinsic safety
certification).
Mountings :- Submerged (without housing protection)
Side mounting with housing protection (for draught and ballasts tanks)
Connection by 1” gas thread
Connection by PN16 DN flange
Operating temperature :- Transducer : -40°C to +125°C. (side mounting).
-40°C to +100°C. (immersed mounting with PTFE cable).
Amplifier : -25°C to +70°C
