Description

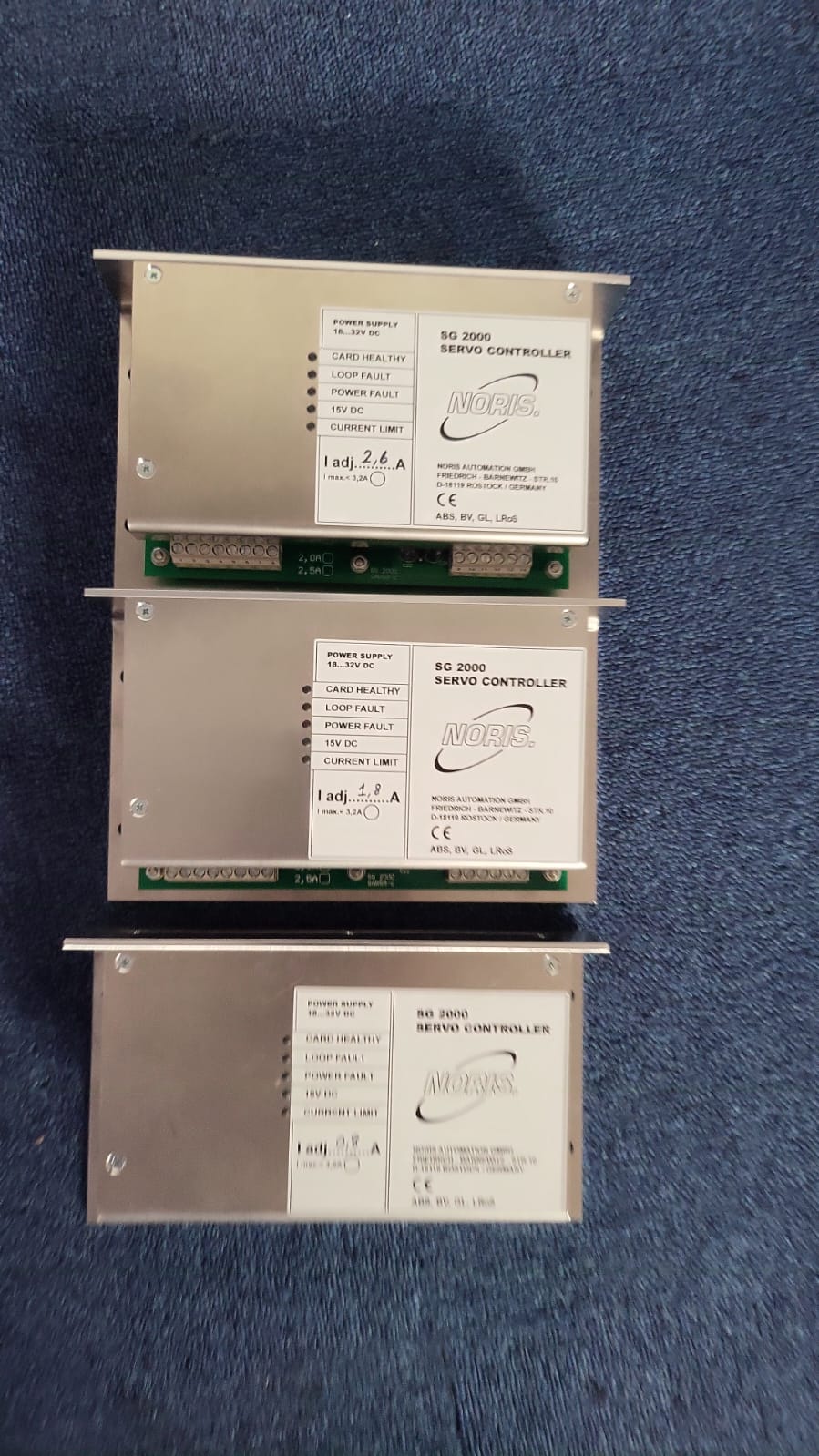

Item: Noris make Servo Valve controller, SG2000( NAR-KD-0151-1)
The servo controller SG 2000 is provided to control hydraulic proportional valves
with 2 solenoids and without position control.
The device is to be mounted in electrical cabinets or terminal boxes. It will be
mounted with 4 screws directly at the mounting plate.
Input signal – +/-10V DC as setting value
– dry contact (NO) or +24V as enable signal
output: – 2 proportional solenoids Imax = 1,5A
– Dry contact „Failure“ (NC)
– Measuring outputs for setting and actual current (0-
10V)
Power supply: – 24V DC +30/-25%
Signal-LED: – LED 1 green – no failure
– LED 2 red – control loop fault
– LED 3 red – voltage too low
– LED 4 green – auxiliary voltage o.K.
– LED 5 yellow- current limitation
