Description
- Compact and robust design
- Ideal for shipbuilding, thanks to their construction and approvals
- Simple assembly with protection tube
- Connection using tab connector, cable outlet at the side
- Pressure resistance up to 40 bar
- Available in various immersion depths
- Compatible measuring transducers, limit value switches and analogue indicators available
- Design available with a Pt100 or an NTC thermistor measuring element
Description :

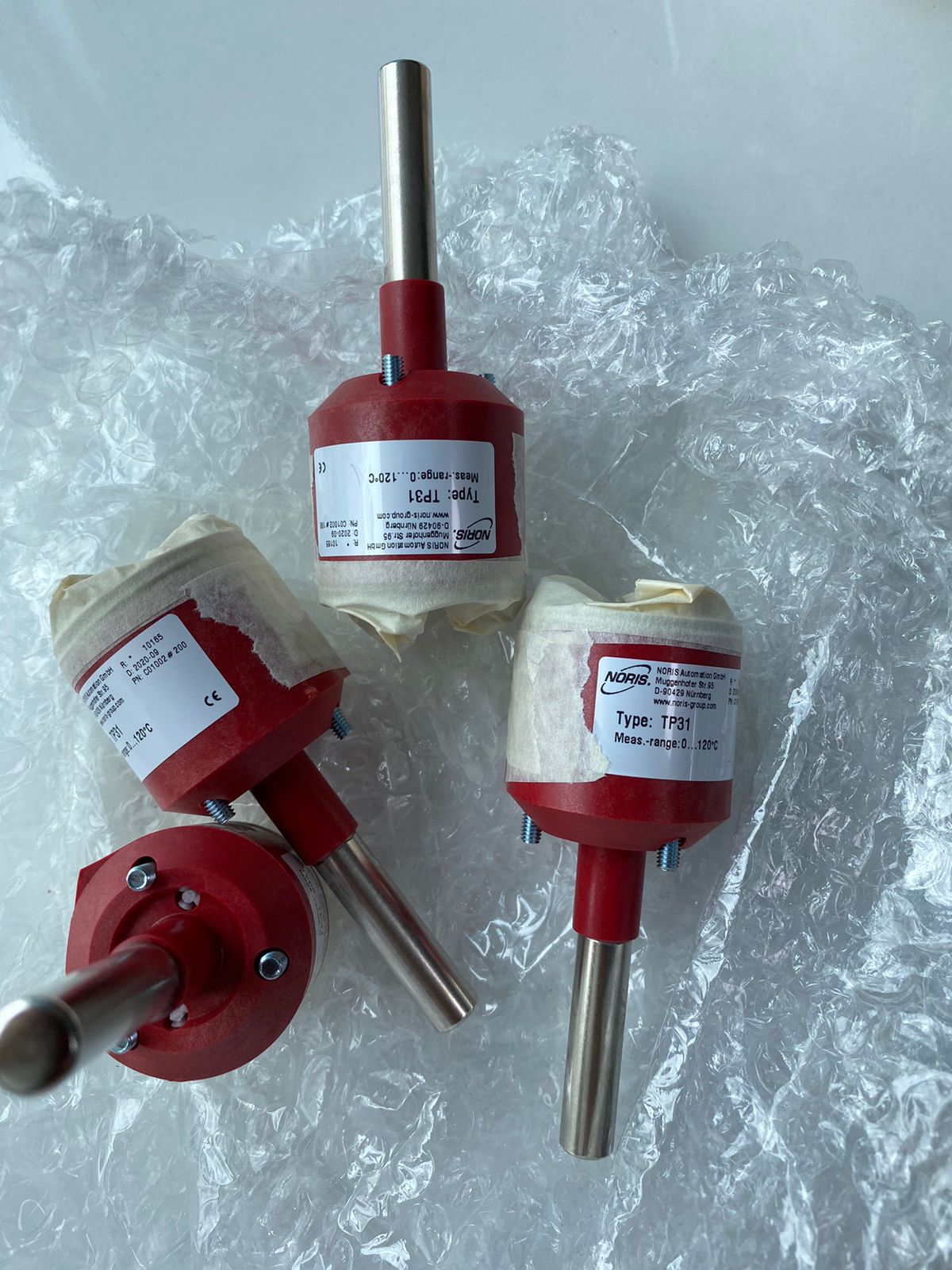

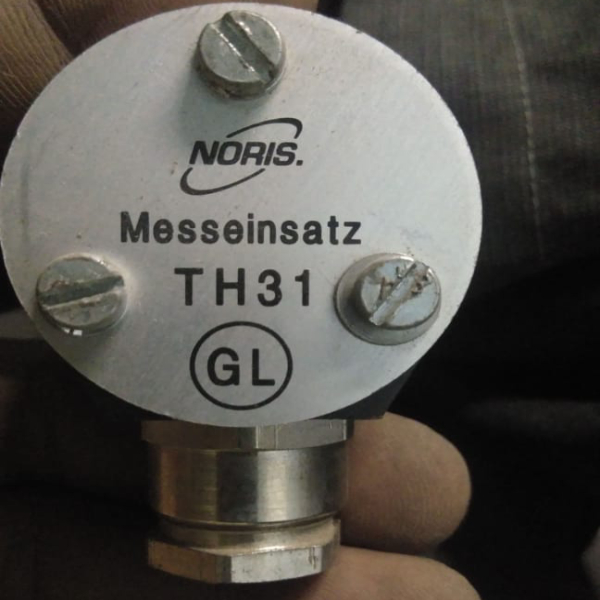

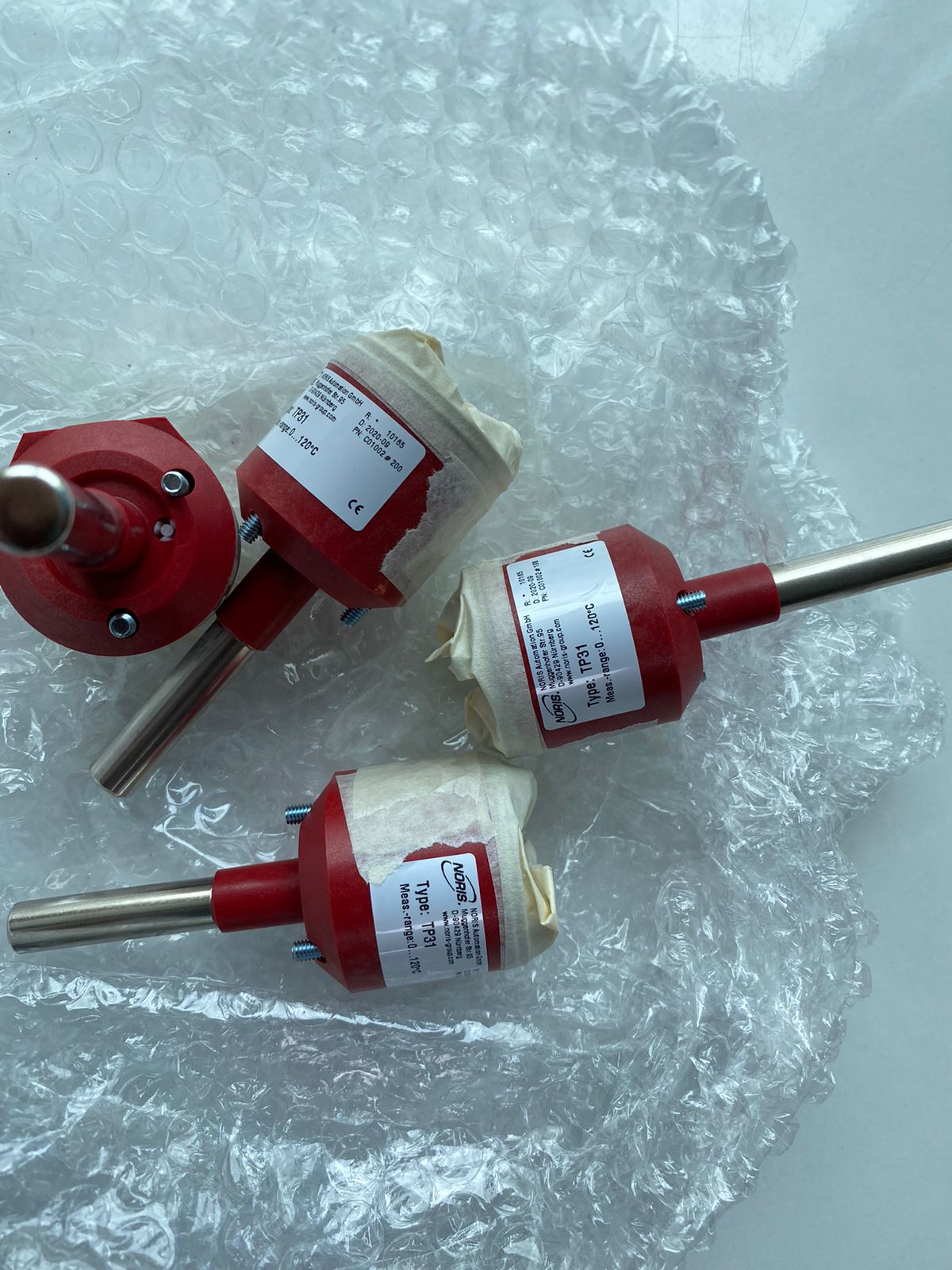

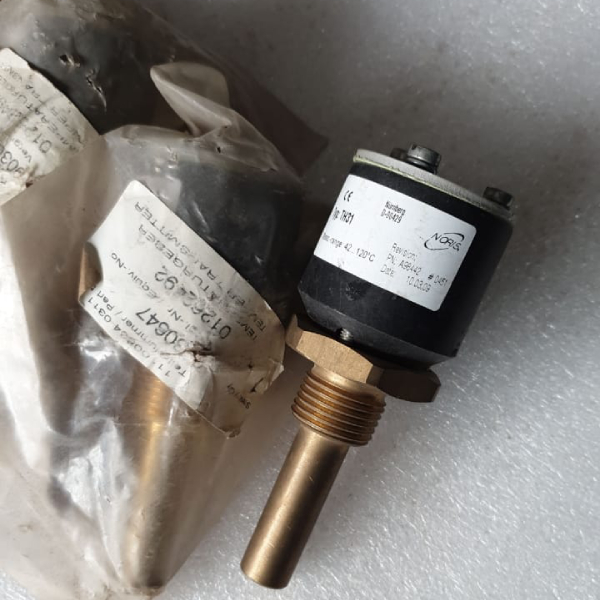

Temperature sensors of type TP31 are stick-in sensors with a Pt100 measuring element, temperature sensors of type TH31 or TH32 are NTC thermistors. They have a cable outlet at the side and are fitted in protection tubes.
Technical Data :
| Measuring principle | TP31: Pt100 TH31: NTC thermistor TH32: NTC thermistor |
| Measuring range | TP31: 0 … 120 °C TH31: 0 … 120 °C TH32: 0 … 70 °C |
| Protection class | IP54; used with protection tube on measuring point, IP68 |
| Material | Sensor tube: stainless steel Housing: plastic |
| Connection | DIN 46244 tab connector / A6.3 x 0.8 |
| Immersion depth | Immersion depth 56 mm, 100 mm (other lengths available on request) |
