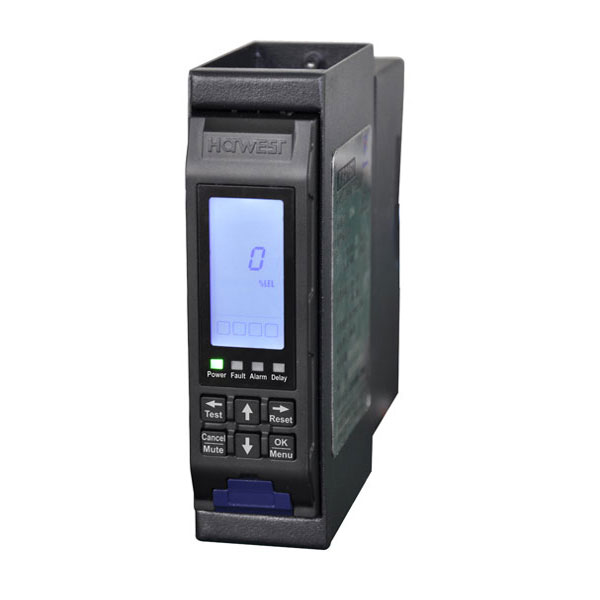

KB2160 Single-channel Control Panel

Description

Overview :

Description:
KB2160 is a single-point gas control panel. Each channel can connect with 1pc of 4-20mA gas detector to monitor the gas detector continuously
Applications:
KB2160 is a single-point gas control panel. It can be used in various kinds of industrial fields where gas monitoring is needed.
Features:
single channel gas control panel.
4-20mA signal input and RS485 signal output
LCD display
relay output and reprogrammable.

Technical Data :

Working Voltage: AC220V±33V or DC24V±6V
Power Consumption: ≤10W
Output Voltage: DC24V±6V
Protection Grade:IP54
Working Temperature: -10℃～50℃
Working Humidity: ≤95%RH
Indication Method:
Indication light to show detector&rsquo s status
Screen display to show alarm data
Different light and sound for alarms and faulty situation indication
Alarm Method: Audible alarm（85dB to 115dB from 1m distance）, Visual alarm
Relay Output: Passive contact capacity 2A/AC220V
Package and Accessories:
1-4 channels per carton, size: 40*26*58cm
